ELVIAL ESSENCE W67
A refined architectural aluminium system designed for modern projects requiring clean geometry, high performance and flexibility in design.
Overview
The ESSENCE W67 is a 67mm hinged system offering multiple energy levels, minimal design options and high construction flexibility.
- System depth: 67mm
- Glass thickness up to 60mm
- Maximum sash height: 2800mm
- Maximum sash weight: 180kg
Applications
- High-end residential projects
- Luxury villas & private homes
- Hotels & hospitality buildings
- Office and commercial buildings
- Renovations with high energy requirements
System Versions

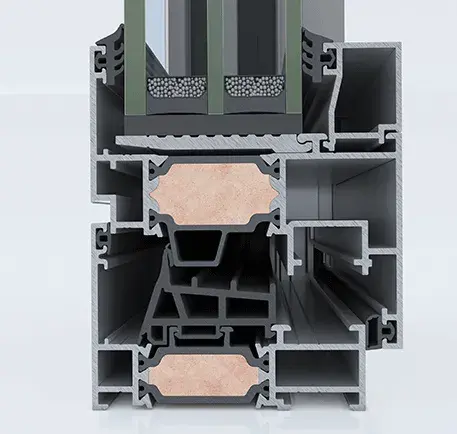

W67 HI²
High-performance version with advanced thermal insulation levels, suitable for demanding architectural applications.
W67BS HI²
Minimal design version with reduced visible aluminium surfaces, offering a cleaner and more contemporary aesthetic.
Technical Specifications
| System depth | 67mm |
| Glass thickness | Up to 60mm |
| Maximum sash height | Up to 2800mm |
| Maximum sash width | Up to 1400mm |
| Maximum sash weight | Up to 180kg |
| Thermal insulation (Uf) | From ≥ 1.1 W/m²K* |
| Air permeability | Class 4 |
| Watertightness | E1350 |
| Wind resistance | C5 / B5 |
*Performance values depend on configuration, dimensions and glazing selection.
Need technical guidance for your project?
Send us your drawings and we will propose the optimal configuration.
