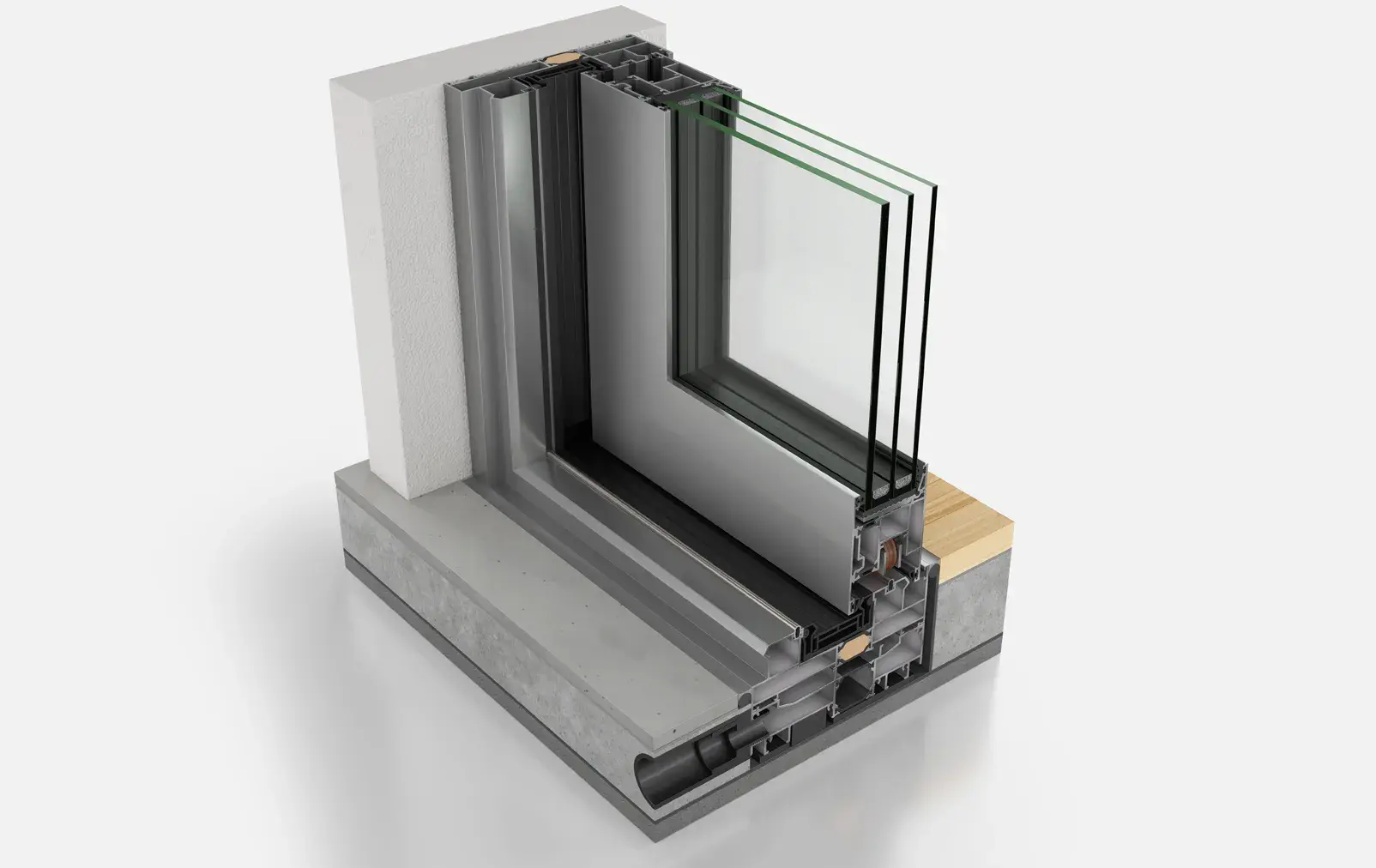

ELVIAL SL60 HI² CLASSIC
A high-performance thermally insulated sliding and lift & slide aluminium system, engineered for large openings, heavy glazing and demanding architectural applications.
Overview
The ELVIAL SL60 HI² CLASSIC is a 60mm sliding system developed for large-scale glazed openings where structural strength, thermal efficiency and smooth operation are essential.
- Sash depth: 60mm
- Glass thickness up to 46mm
- Maximum sash height: 3500mm
- Maximum sash width: 3000mm
- Maximum sash weight: 440kg
Applications
- Large glazed openings
- Luxury villas & private residences
- High-end residential developments
- Hotels & hospitality projects
- Commercial and office buildings
- Projects requiring heavy-duty lift & slide solutions
Design & Functionality
Large-Scale Construction Capability
Designed to accommodate large sash dimensions and weights of up to 440kg, making the SL60 HI² CLASSIC suitable for expansive glazed openings and demanding architectural applications.
Sliding & Lift & Slide Solutions
Available in conventional sliding and lift & slide configurations, providing flexibility according to opening dimensions, glazing weight and operational requirements.
Available Configurations
Standard Edition
Conventional configuration with visible aluminium profiles designed for robust performance and a wide range of sliding typologies.
Infloor Edition
Configuration allowing reduced visible frame height at floor level, supporting cleaner architectural integration and improved continuity between interior and exterior spaces.
Technical Specifications
| Sash depth | 60mm |
| Maximum glass thickness | Up to 46mm |
| Maximum sash height | Up to 3500mm |
| Maximum sash width | Up to 3000mm |
| Maximum sash weight | Up to 440kg |
| Successive mullion width | From 48mm* |
| Thermal insulation (Uf) | From ≥ 2.4 W/m²K* |
| Window performance (Uw) | From approx. 1.00 W/m²K* |
| Air permeability | Class 4 |
| Watertightness | E1200 |
| Wind resistance | C2 / B3 |
| Sound reduction | Up to 45dB* |
*Performance values and visible profile dimensions depend on sash type, glazing, configuration, hardware and project-specific dimensions.
Key Features
- Large sash dimensions up to 3500 × 3000mm
- Maximum sash weight up to 440kg
- Sliding and lift & slide configurations
- High-performance thermal insulation
- Infloor installation option
- Central interlock available from 48mm
- Advanced central sealing system
- Optional lift assistance mechanism
- Silent Close damping options
- Anti-Jemmy security device available
Typical Configurations
- 2-sash sliding
- 2-sash with fixed section
- 3-sash sliding
- 4-sash multi-track configurations
- 5-sash multi-track configurations
- Sliding systems with flyscreen
- Internal corner configurations
- External corner configurations
Planning a project with large glazed openings?
Send us your drawings, opening dimensions and glazing requirements and our technical team will recommend the optimal SL60 HI² CLASSIC configuration for your project.
