High-performance aluminium curtain wall systems engineered for contemporary architecture, expansive glazed façades and demanding international projects.
A 50 mm mullion-transom platform combining structural capability, refined sightlines and architectural flexibility.
The ELVIAL FS50 façade platform combines structural capability, thermal performance and architectural flexibility within a refined 50 mm mullion-transom system.
Available in conventional capped curtain wall and Structural Glazing configurations, the system enables expansive glass façades while maintaining reliable weather resistance, drainage and structural performance.
A thermally insulated mullion-transom curtain wall system engineered for large façade grids, high glazing loads and demanding architectural applications.
Supports vertical, angular, curved and atrium constructions while remaining compatible with ELVIAL opening systems.

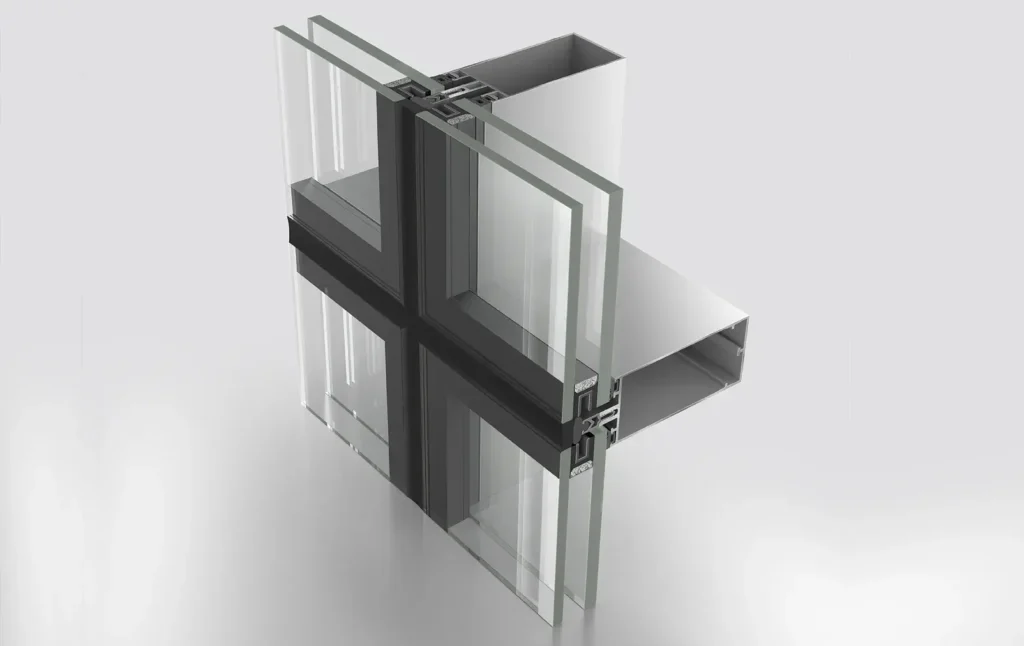

A Structural Glazing façade solution conceived for clean, uninterrupted glass surfaces and a refined contemporary architectural expression.
Concealed external aluminium framing creates a flush glazed appearance with compatibility for projected windows, doors and thermally insulated ELVIAL systems.
Multiple mullion-transom connection solutions enable large glazed grids while efficiently transferring structural loads throughout the façade system.

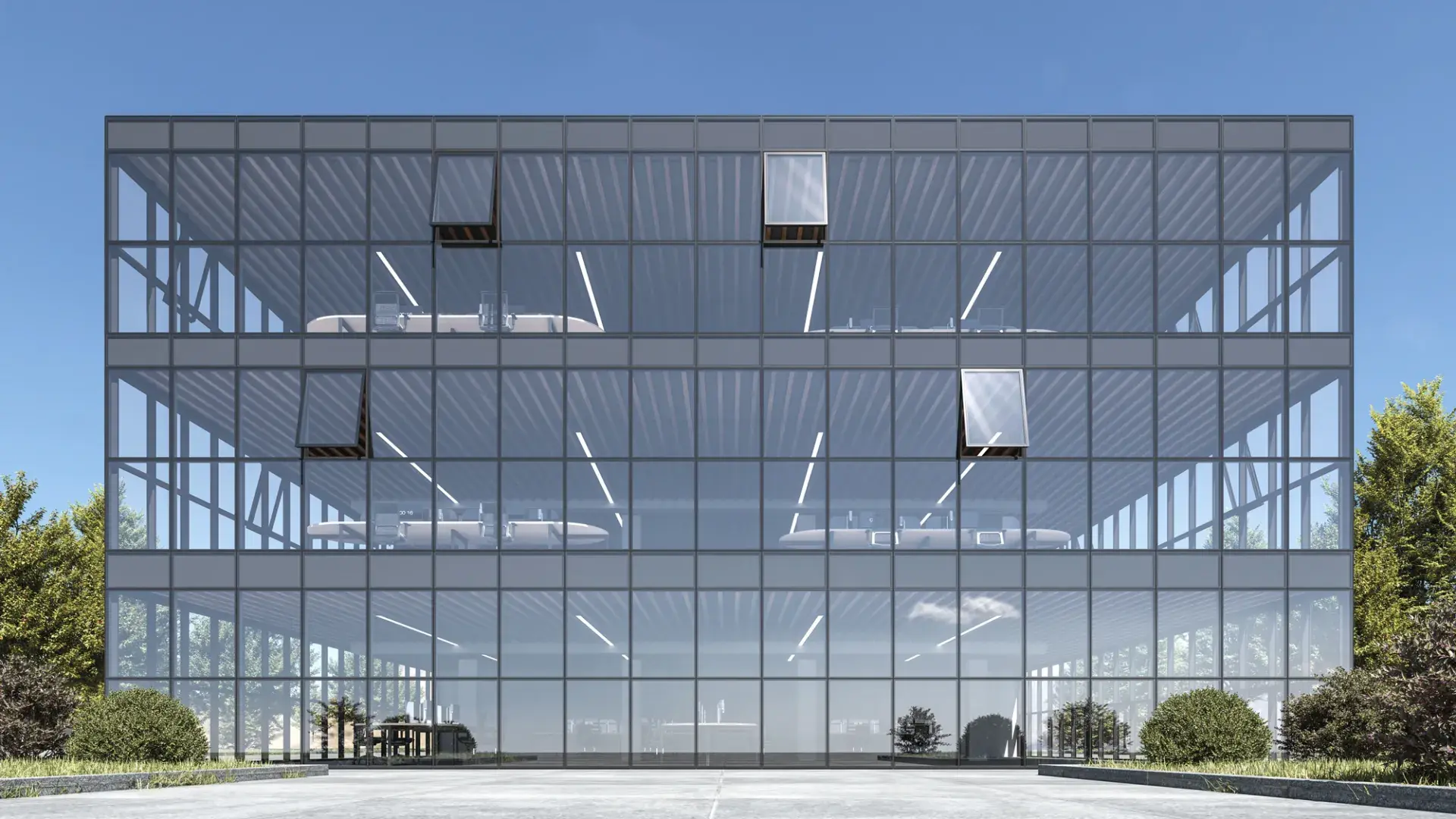

The 50 mm structural grid provides refined sightlines and maximises glazed surfaces, allowing natural light to become an integral part of the architectural concept.
Key system dimensions and indicative performance values for architectural and technical project evaluation.
Capped Mullion-Transom Façade
Structural Glazing Façade
*Maximum glazing loads and performance values depend on façade dimensions, mullion and transom selection, glazing configuration, structural loads and project-specific engineering requirements.
A three-level drainage and ventilation system manages water and moisture across complex façade grids while maintaining continuity between mullions and transoms.
Specialised mullion-transom connections and glazing supports enable efficient load transfer and reliable performance in large-scale façade constructions.
Send us your architectural drawings, façade elevations and project performance requirements. Our technical team will evaluate the appropriate ELVIAL FS50 or FS50_SG solution for your project.
