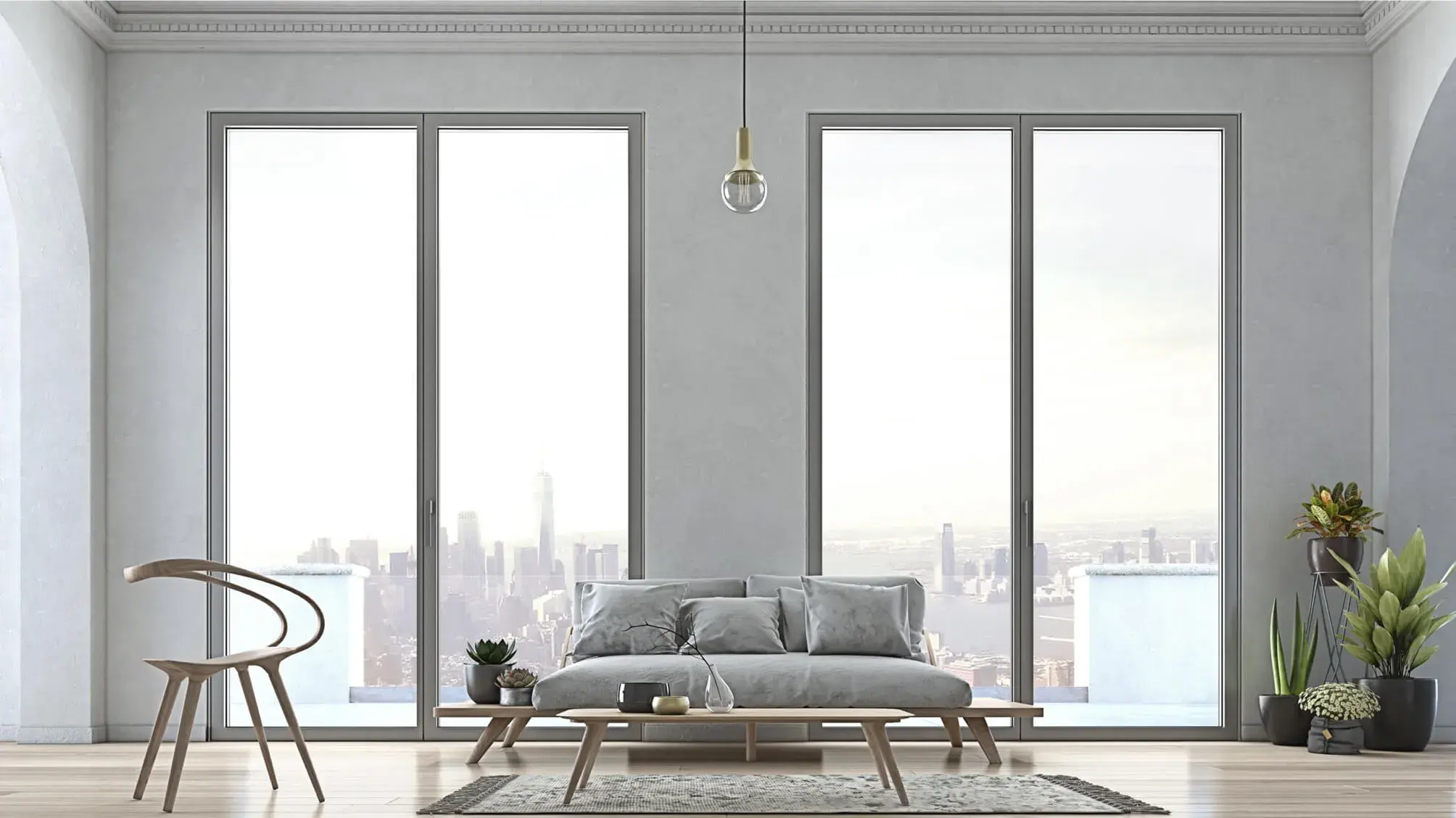

A premium thermally insulated aluminium opening system engineered for iconic architecture, exceptional energy efficiency and demanding high-end residential and commercial projects.
A 77 mm premium aluminium platform combining minimal design, advanced insulation technology and exceptional structural performance.
ELVIAL ICONIC W77 AI² represents an advanced generation of thermally insulated aluminium opening systems, created for architectural projects where design, energy efficiency, structural performance and comfort must coexist without compromise.
The 77 mm platform combines exceptionally low thermal transmittance with minimal visible profiles, large sash dimensions and advanced sealing technology, providing a sophisticated solution for premium residential and commercial architecture.
The flagship classic-sash configuration combines refined 89 mm visible proportions with advanced thermal insulation, exceptional sealing performance and impressive sash dimensions.
Available with European Groove [CE] and Multilock Groove [ML] hardware configurations, enabling extensive architectural flexibility and multiple opening typologies.
A concealed-sash interpretation created for projects where minimal aluminium sightlines and maximum glazed surfaces define the architectural concept.
With a visible frame-sash dimension of only 66 mm, the blind-sash configuration allows natural light and glass to dominate the elevation while preserving high thermal and weather performance.
Carefully engineered profile proportions minimise visible aluminium surfaces and maximise the perception of glass, transparency and natural light.
Specially designed frame solutions create an elegant, same-level appearance on the internal side of the window, reinforcing the system's architectural purity.
Hidden mechanisms and concealed hinge options allow the functional components of the window to remain visually discreet, preserving the clean architectural language.
Reinforced profile solutions support substantial sash dimensions and glazing loads, enabling impressive openings while maintaining refined visual proportions.
Key system dimensions and certified performance values for architectural specification and technical project evaluation.
Classic Sash · CE / ML
Blind Sash · CE / ML
*Threshold dimensions and certain technical characteristics depend on the selected CE or ML configuration. Maximum dimensions, glazing thickness and performance values depend on typology, hardware, glazing, profile combination and project-specific engineering requirements.
ELVIAL I² innovative insulation technology creates an additional insulating zone within the central chamber of the aluminium profiles, significantly improving thermal performance while maintaining structural strength.
A sophisticated three-level sealing concept combines specially designed EPDM components, co-extruded gaskets and dedicated sealing elements to deliver exceptional protection against air and water penetration.
Contact Mparolas for technical information, glazing options, system configuration and project-specific high-performance aluminium window solutions.
