Fire-Resistant Aluminium Windows & Doors
Reynaers
Reynaers
CS 77-FP
A certified fire-resistant aluminium window, flush door and glazed partition system combining fire protection, safety, architectural flexibility and everyday building performance.
Fire Resistance · Safety · Architecture
01 / Overview
Fire-Safe Architecture
Designed to protect.
Designed to protect.
Engineered to integrate.
Reynaers ConceptSystem 77-FP is the fire-resistant extension of the established CS 77 aluminium platform, developed for applications where fire compartmentation, safe escape routes and controlled fire spread are essential building requirements.
The system includes fire-resistant doors, opening windows, fixed glazed elements and glazed partition walls, allowing architects to integrate fire safety without introducing a completely different visual language into the project.
Depending on configuration and certification, CS 77-FP offers EI30 and EI60 solutions together with smoke-control, panic-exit, emergency-exit and burglar-resistant options.
EI 60
Fire Resistance
Fire-resistant door and partition solutions available up to EI60 classification.
68 mm
System Depth
Based on the proven ConceptSystem 77 fire-resistant aluminium platform.
2.75 m
Maximum Door Leaf Height
Large certified fire-resistant entrance and compartment doors.
RC2
Security Capability
Burglar-resistant configurations are available together with fire protection.
02 / Classification
Understanding Fire Resistance
E · I · W
E · I · W
Three essential criteria.
European fire classifications describe how a building element behaves when directly exposed to fire and for how long its protective characteristics are maintained.
I
Thermal Insulation
Temperature rise on the protected side remains within defined limits, helping protect people and adjacent building areas.
W
Radiation Control
Radiated heat through the fire-resistant element remains within defined limits during the classified exposure period.
03 / Configurations
Certified Applications
One fire-resistant platform.
One fire-resistant platform.
Multiple building solutions.
01 / Doors
Fire-Resistant Doors
Single and double-leaf flush doors are available for inward and outward opening applications, depending on the required fire classification.
02 / Windows
Opening Windows
Inward-opening window solutions are available in certified EW30 and EI₂30 configurations for selected project applications.
03 / Fixed
Fixed Glazing
Fire-resistant fixed glazing can be integrated alongside doors or used as part of larger glazed compartment walls.
04 / Partition
Glazed Partition Walls
Large fire-resistant glazed partitions provide transparency while maintaining required compartmentation between building zones.
05 / Panic
Panic Doors
Compatible configurations can incorporate panic-exit hardware in accordance with EN 1125 requirements.
06 / Emergency
Emergency Exit Doors
Emergency exit configurations are available with dedicated hardware according to EN 179 requirements.
04 / Engineering
Fire-Resistant Engineering
Protection built
Protection built
inside the aluminium profile.
60 min
Fire Resistance Capability

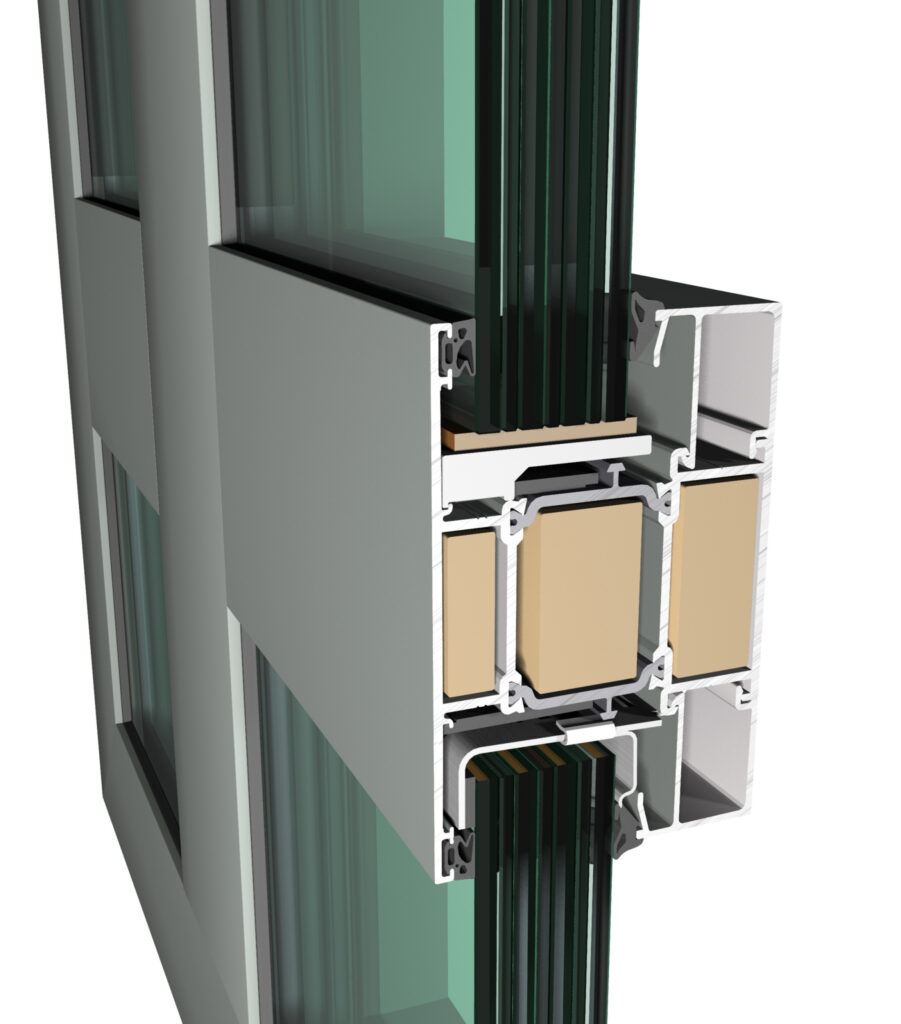

Dedicated cooling and insulating materials are integrated into the profile chambers according to the required EI30 or EI60 configuration.
Internal Cooling Material
Special fire-resistant insulating materials are incorporated into selected aluminium chambers to improve thermal protection.
Intumescent Seals
Dedicated swelling gaskets react to elevated temperatures and contribute to maintaining the integrity of the protected construction.
Certified Fire Glass
The system supports approved fire-resistant glazing from selected specialist glass suppliers according to each certified configuration.
Tested Hardware
Locks, hinges, door closers and emergency hardware form part of the approved fire-resistant door configuration.
05 / Protection
EI30 & EI60
Select the level of protection
Select the level of protection
required by the project.
06 / Technical
Technical Specifications
Certified safety.
Certified safety.
Precise system engineering.
Representative characteristics for CS 77-FP EI30 and EI60 fire-resistant configurations.
Reynaers ConceptSystem 77-FP
Fire-Resistant Windows, Doors & Partitions
Dimensions & Construction
System Depth
68 mm
Rebate Height
25 mm
Glass / Infill Thickness
Up to 52 mm*
Maximum Door Leaf Width
Up to 1320 mm*
Maximum Door Leaf Height
Up to 2750 mm*
Door Configuration
Single / Double
Door Opening
Inward / Outward*
Glazing Method
EPDM / Silicone*
Fire & Safety Performance
Door Fire Resistance
EI30 / EI60*
Opening Window
EW30 / EI₂30*
Smoke Control
Sa / S200*
Burglar Resistance
Up to RC2*
Panic Door
EN 1125*
Emergency Exit
EN 179*
Fire Test
EN 1634-1
Classification
EN 13501-2
*Fire resistance, dimensions, glazing, hardware and available classifications depend on the exact element type, fire direction, glass supplier, single- or double-leaf construction, national approval and project-specific tested configuration. Final design must always be checked against the applicable Reynaers classification and certification documents.
07 / Performance
Beyond Fire Resistance
Fire protection without giving up
Fire protection without giving up
everyday building performance.
Fire
EI30 / EI60
Certified fire-resistant configurations depending on application.
Air
Class 4
High air-tightness capability in representative door configurations.
Water
7A
Weather-resistant exterior door configurations are available.
Acoustic
41 dB
Acoustic performance depending on glazing and door configuration.
Security
RC2
Fire protection can be combined with enhanced burglar resistance.
08 / Safety
Escape Routes & Access Control
Protect the compartment.
Protect the compartment.
Preserve the escape route.
01
Panic Exit
EN 1125-compatible configurations
02
Emergency Exit
EN 179-compatible configurations
03
Smoke Control
Sa / S200 smoke-control capability
04
Access Control
Integration with compatible building systems
09 / Applications
Building Applications
Fire protection where
Fire protection where
architecture still matters.
01
Hotels
Protected corridors and escape routes
02
Hospitals
Fire compartmentation with glazed visibility
03
Offices
Fire-resistant internal and external divisions
04
Public Buildings
Certified doors and protected circulation areas
Key Features
CS 77-FP
CS 77-FP
at a glance.
A certified Reynaers aluminium platform combining fire resistance, escape-route functionality and architectural flexibility.
- Fire-resistant aluminium system
- EI30 & EI60 door solutions
- EW30 / EI₂30 opening windows*
- Fixed glazed fire-resistant partitions
- 68 mm system depth
- Glass / infill thickness up to 52 mm*
- Door leaves up to approx. 1320 × 2750 mm*
- Single & double-leaf doors
- Panic exit EN 1125 options*
- Emergency exit EN 179 options*
- Smoke control Sa / S200*
- Burglar resistance up to RC2*
Fire-Resistant Project Consultation
Specify the required fire protection before selecting the final configuration.
Contact Mparolas with your architectural drawings, required fire-resistance classification, element dimensions, glazing requirements and opening direction. Our technical team can evaluate the appropriate Reynaers CS 77-FP configuration for your project.
