Integrity
Certified E15, E30 and E60 configurations resist the passage of flames and hot gases for the specified test duration.
Fire-Resistant Aluminium Curtain Wall
ConceptWall 50
ConceptWall 50
Fire Proof

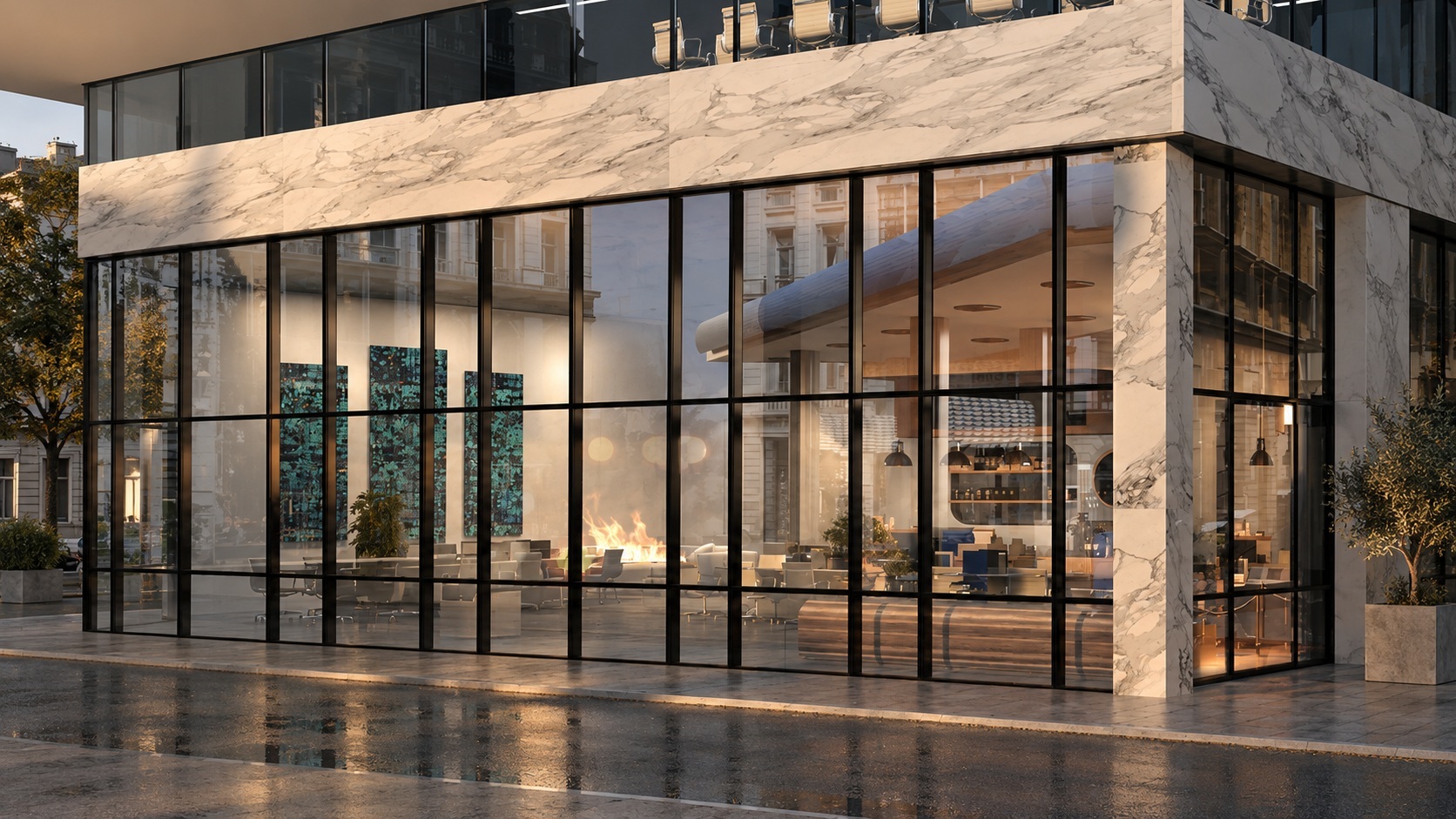

A certified fire-resistant mullion-transom façade system combining architectural transparency, controlled fire compartmentation and the refined 50 mm sightline of the ConceptWall 50 platform.
Fire Resistance · Transparency · Façade Engineering
01 / Overview
Fire-Resistant Façade Architecture
Maximum transparency.
Maximum transparency.
Certified fire protection.
Reynaers ConceptWall 50 Fire Proof is the fire-resistant extension of the established ConceptWall 50 mullion-transom curtain-wall platform.
The system allows architects to maintain the refined 50 mm façade grid while integrating certified fire-resistant glazing and specialised profile reinforcement into protected building compartments.
CW 50-FP can be used for internal and external fire-resistant glazed façades and can integrate compatible fire-resistant door solutions where access through the protected façade is required.
50 mm
Visible Sightline
The characteristic ConceptWall mullion-transom façade grid.
EI 60
Fire Resistance
Certified configurations are available up to 60-minute EI protection.
105 mm
Maximum Mullion Depth
Dedicated fireproof mullion profiles from approximately 63 to 105 mm.
48 mm
Fire Glass Thickness
Selected configurations support specialised glazing up to approximately 48 mm.
02 / Classification
Fire Resistance Classification
E · EW · EI
E · EW · EI
Protection according to the project.
CW 50-FP is available in several European fire-resistance classifications, allowing the façade specification to respond to different compartmentation requirements.
Integrity + Radiation
EW20, EW30 and EW60 configurations combine integrity with controlled thermal radiation through the glazed construction.
Integrity + Insulation
EI15, EI30 and EI60 solutions additionally limit the temperature rise on the protected side of the façade.
03 / Architecture
50 mm Curtain-Wall Grid
Fire protection without
Fire protection without
visually changing the façade.
50 mm
Interior & Exterior Sightline
CW 50-FP maintains the same clean 50 mm architectural grid associated with the wider ConceptWall 50 façade family.
Consistent Façade Language
Fire-resistant sections can visually coordinate with adjacent standard ConceptWall 50 façade areas.
Pressure-Plate Glazing
Fire-resistant glazing is mechanically secured using the established pressure-plate curtain-wall concept.
Dedicated Fire Profiles
CW 50-FP uses specialised mullion and transom depths developed for approved fire-resistant assemblies.
Integrated Fire Doors
Compatible Reynaers fire-resistant door systems can be incorporated where access through the protected façade is required.
04 / Protection
EI30 & EI60
Select the protection level
Select the protection level
required by the building strategy.
Fire-Resistant Façade
EI30
30-Minute Insulated Protection
A certified façade configuration designed to maintain integrity and thermal insulation for the defined 30-minute fire exposure period.
Extended Protection
EI60
60-Minute Insulated Protection
Enhanced CW 50-FP configurations provide extended fire resistance for demanding compartmentation and protected façade zones.
05 / Construction
Fire-Resistant Construction
A complete protected
A complete protected
façade assembly.
01
Fireproof Mullions
Dedicated profiles from 63 to 105 mm depth
02
Fireproof Transoms
Dedicated profiles from 67 to 109 mm depth
03
Fire-Resistant Glass
Certified glazing according to required classification
04
Fireproof Door Integration
Compatible certified door solutions
06 / Technical
Technical Specifications
Certified façade protection.
Certified façade protection.
Defined technical parameters.
Reynaers ConceptWall 50-FP
Fire-Resistant Mullion-Transom Façade
System Geometry
Interior Visible Width
50 mm
Exterior Visible Width
50 mm
Mullion Depth
63–105 mm
Transom Depth
67–109 mm
Rebate Height
20 mm
Glass Thickness
35 / 45–48 mm*
Glazing
Pressure Plates
Roof Application
No
Fire Classification
Integrity
E15 / E30 / E60*
Integrity + Radiation
EW20 / EW30 / EW60*
Integrity + Insulation
EI15 / EI30 / EI60*
Door Integration
Fireproof Door*
Typical Façade Type
Stick Curtain Wall
Exterior Face Caps
Multiple Shapes
EI30 Connections
Certified*
EI60 Connections
Equivalent Detail*
*Available fire classification, glass thickness, profile reinforcement, element size and compatible door solution depend on the exact tested configuration, glass supplier, installation details and applicable national certification. Final project design must always be checked against current Reynaers classification and fire-test documentation.
07 / Reference
Reynaers Reference Configuration
Fire safety combined
Fire safety combined
with façade performance.
Reynaers has demonstrated ConceptWall 50 Fireproof in a complete façade configuration with an integrated fire-resistant door and strong building-envelope performance.
Thermal
Uf 1.7
Reference value for the specific Reynaers fireproof façade configuration.
Air
A4
Air-performance classification of the referenced demonstration system.
Water
R7
Watertightness classification of the referenced configuration.
Wind
1200 Pa
Wind-load performance in the referenced Reynaers façade setup.
08 / Doors
Fireproof Door Integration
Protected access
Protected access
through the glazed façade.
Established Integration
CS 77-FP Door
The established ConceptWall 50-FP technical platform includes integration with the ConceptSystem 77-FP fire-resistant door, allowing glazed fire compartments to incorporate compatible protected access points.
Newer Reynaers Solutions
MasterLine Fireproof Integration
Reynaers has also demonstrated newer ConceptWall 50 Fireproof façade configurations integrated with MasterLine fire-resistant doors, extending the design and performance possibilities of the platform.
09 / Applications
Protected Architecture
Fire compartmentation
Fire compartmentation
without sacrificing transparency.
01
Commercial Buildings
Protected glazed façade zones
02
Hotels
Atriums, circulation zones and compartments
03
Hospitals
Transparent fire-resistant separation
04
Public Buildings
Certified protected glazed elevations
Key Features
CW 50-FP
CW 50-FP
at a glance.
A certified fire-resistant curtain-wall system that preserves the architectural transparency of the ConceptWall family.
- Fire-resistant curtain-wall system
- 50 mm interior visible width
- 50 mm exterior visible width
- Mullion depth 63–105 mm
- Transom depth 67–109 mm
- 20 mm glazing rebate
- E15 / E30 / E60 capability*
- EW20 / EW30 / EW60 capability*
- EI15 / EI30 / EI60 capability*
- Fire glass 35 / 45–48 mm*
- Pressure-plate glazing
- Fire-resistant door integration
Fire-Resistant Façade Projects
Specify the fire classification before designing the façade configuration.
Contact Mparolas with the required E, EW or EI classification, façade elevations, element dimensions, fire-resistant glazing specification and door requirements. Our technical team can evaluate the appropriate Reynaers ConceptWall 50 Fire Proof configuration for your project.
