A minimal thermally insulated sliding aluminium system designed to maximise natural light, conceal the frame within the architecture and create effortless connections between interior and exterior spaces.
Only 44 mm of visible aluminium at the interlocking profile for greater transparency and refined minimal architecture.
ALUMIL SMARTIA M630 PHOS is a thermally insulated minimal sliding system developed for contemporary residential architecture where transparency, natural light and visual continuity are fundamental to the design.
Following a discreet architectural philosophy, the perimeter aluminium profiles can be concealed within the surrounding construction, leaving only the refined 44 mm interlocking profile visible between the sliding panels.
Classic parallel sliding configurations combine large glazed areas with slim aluminium sightlines and smooth everyday operation.
Available in two-sash, three-sash and multiple-panel arrangements according to the architectural requirements of the project.
Sliding panels can disappear into wall pockets, opening the façade almost completely and strengthening the visual connection between internal and external areas.
Single and meeting-stile pocket configurations provide architectural flexibility while preserving the minimal character of the system.
Corner solutions allow expansive glazing to continue across adjoining elevations and create more transparent, open architectural spaces.

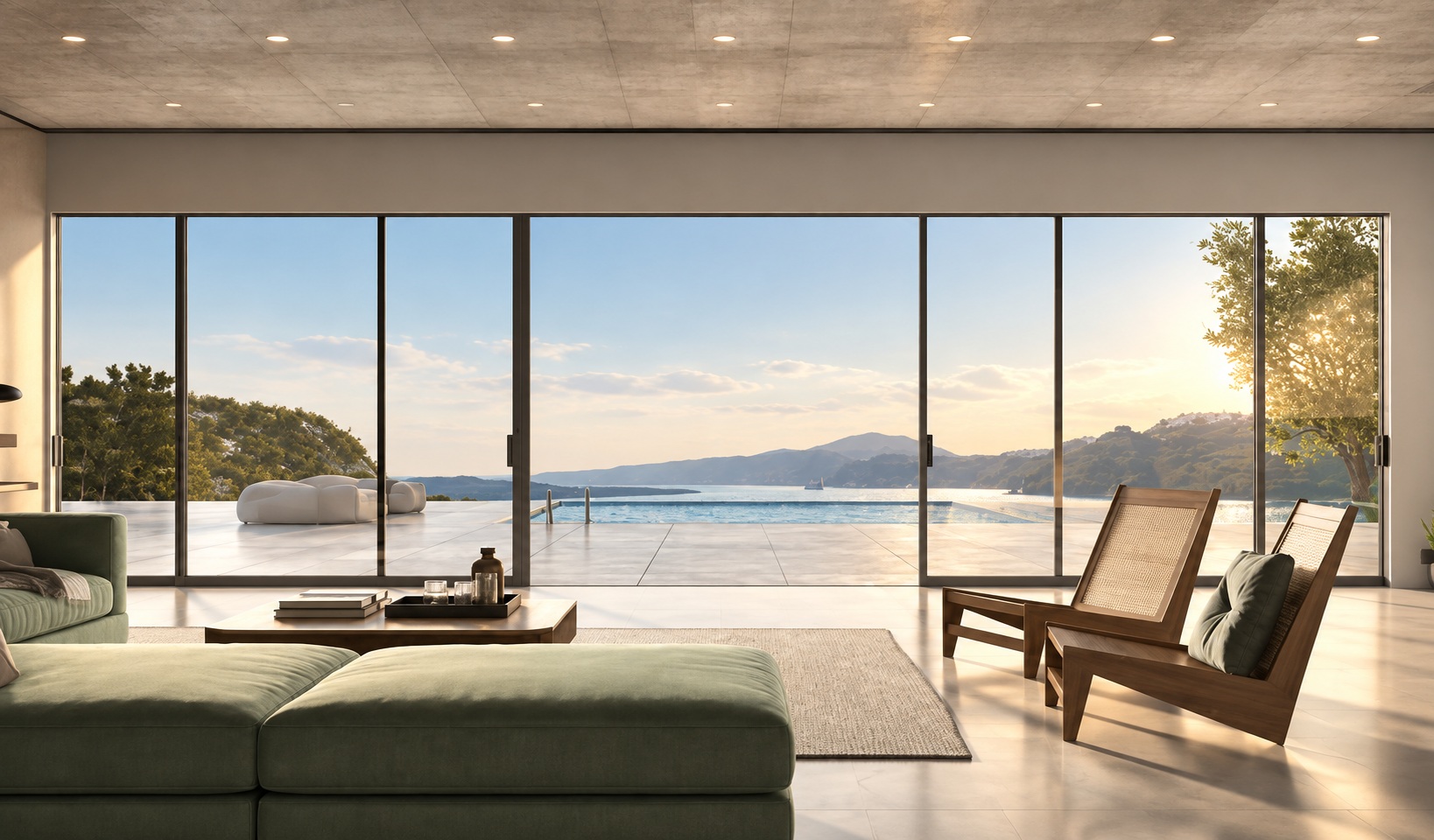

Ideal for contemporary residential architecture where uninterrupted views and maximum natural light define the design concept.
The narrow 44 mm meeting profile reduces aluminium interruption between panels and allows the glazed surface to become the dominant architectural element.

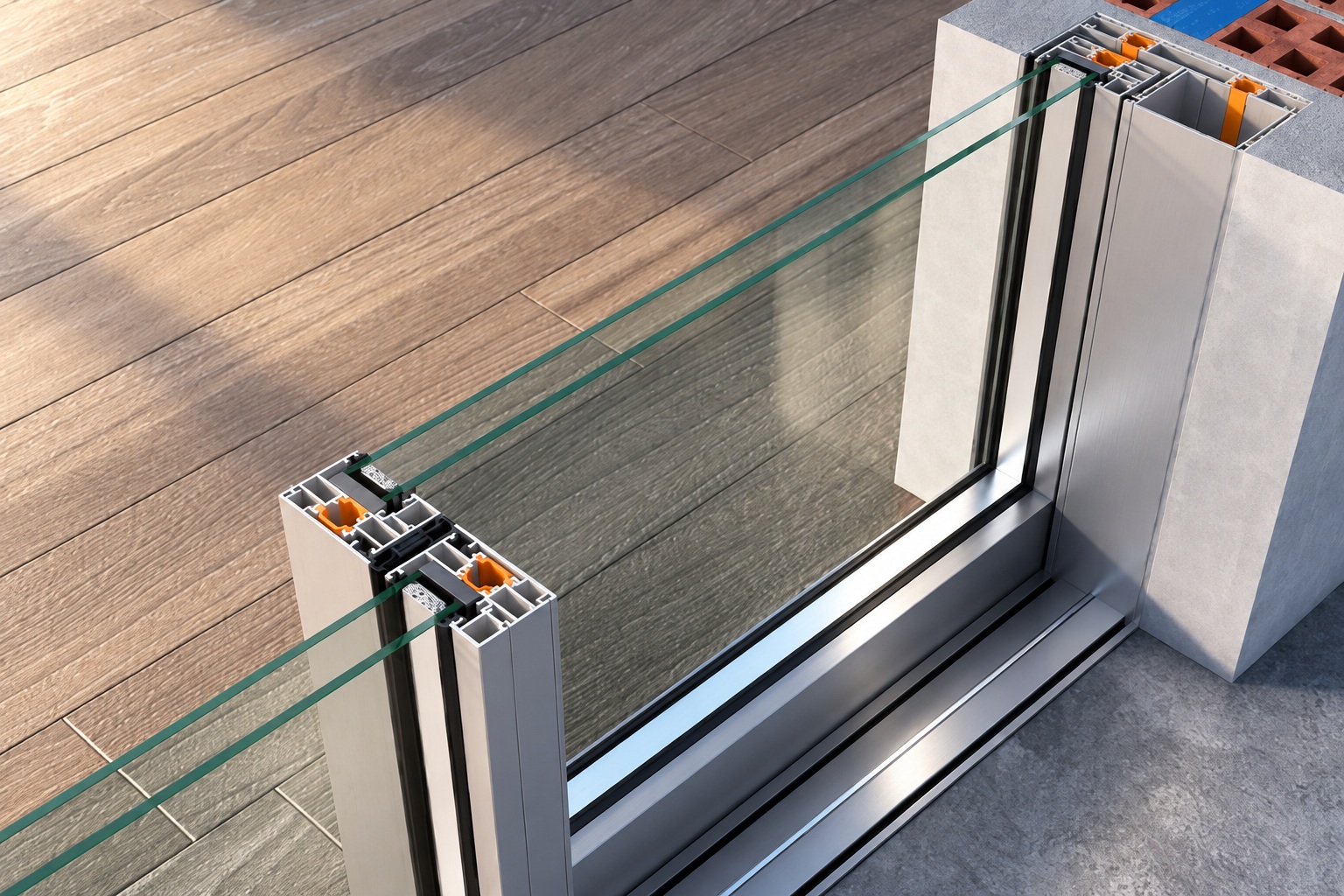

Perimeter profiles can be integrated within the surrounding construction, creating a cleaner visual connection between glass, walls, ceiling and floor.
The low threshold can be installed on the finished floor or integrated flush with it, providing comfortable access and a more continuous architectural transition.
Dedicated insect-screen configurations follow the same minimal philosophy, allowing the screen to remain discreetly integrated within the sliding system.
Core dimensions and performance values for architectural specification and technical project evaluation.
Thermally Insulated Minimal Sliding System
*Uw performance depends on overall frame dimensions, glazing, glass Ug value and configuration. Maximum sash weight and final system performance depend on typology, glazing, dimensions, hardware and project-specific requirements.
Stainless steel rolling components provide smooth sliding operation and enhanced resistance to corrosion, supporting long-term functionality of large glazed sliding panels.
An advanced multi-point locking mechanism enhances security while maintaining simple operation and the discreet architectural appearance of the minimal sliding system.
Additional concealed profiles can be incorporated into the construction to facilitate water drainage while preserving the clean appearance of the threshold and surrounding surfaces.
The 32 mm threshold can be incorporated into the floor construction to create a more continuous transition between interior and exterior spaces and improve everyday accessibility.
Contact Mparolas for technical information, glazing options, system configuration and project-specific minimal aluminium sliding solutions.
